Portable Veterinary Ultrasound Scanner – 3.5MHz Wireless Probe, Handhe…

Price: $499.00
(as of Jun 01, 2025 01:57:55 UTC –
Details)

Product Description

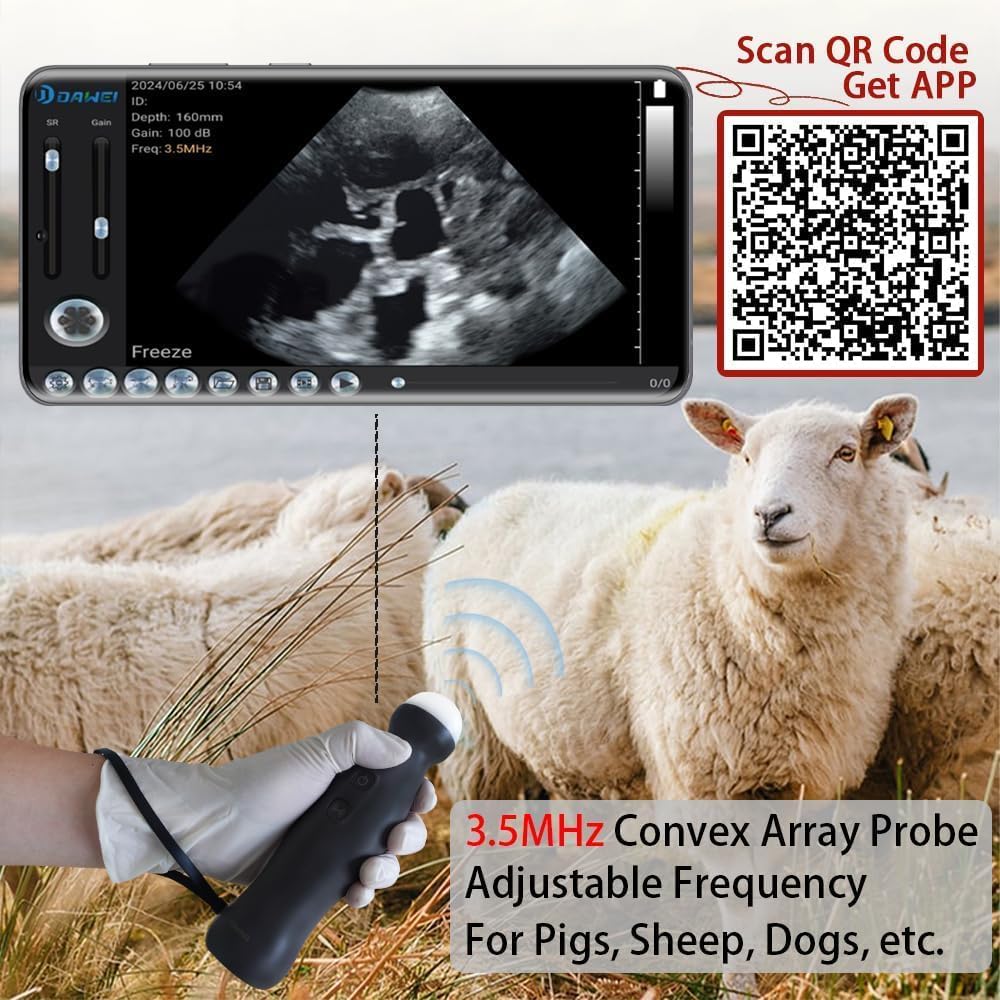

Veterinary Wireless Ultrasound Machine with 3.5MHZ Probe For Pig, Sheep, Dog

Technical Specifications

Display: 3.1 inches, compatible with mobile phones and tablets. Interface: Supports both Chinese and English languages.Scanning Method: 3.5M mechanical sector scan. Frequency: Supports 2.5MHz, 3.5MHz, and 5.0MHz.Display Mode: B mode.Depth Adjustment: Adjustable from 100-180mm (100mm, 120mm, 140mm, 160mm, 180mm).Gain Adjustment: 60-120dB.Image Processing: Adaptive speckle noise suppression, contrast enhancement, edge enhancement.Gray Scale: 256 levels.Cine Loop: Maximum of 128 frames, with continuous playback or frame-by-frame viewing.Obstetric Measurements: Supports obstetric measurements for three types of animals: pigs (GSD, BF), dogs (BD, CRL, GS, HD), and goats (BPD).Backfat Measurement: Automatic recognition and measurement.Image Storage: Supports JPG format. Report Format: Supports PDF format.Battery Indicator: Displayed on mobile phones or tablets.Battery Life: Uses imported 18650 standard battery cells, can work continuously for ≥3.5 hours.Waterproof Level: IP67 waterproof and dustproof (probe tip).

Obstetric measurement function for pig dog sheep

Obstetric measurement function for pig

Click the pig measurement button in frozen state, and BF and GSD measurement functions will appear on the interface

Obstetric measurement function for dog

Click the dog measurement button in frozen state, and the GSD, BD, CRL, and HD measurement functions of the dog will appear on the screen

Obstetric measurement function for sheep

Click the goat measurement button in frozen state, and the BPD measurement function for goats will appear on the screen

Foundation adjustment

Convenient Image Freeze

Switch between scanning and freeze states by clicking the freeze/unfreeze button on the interface or the button on the device.

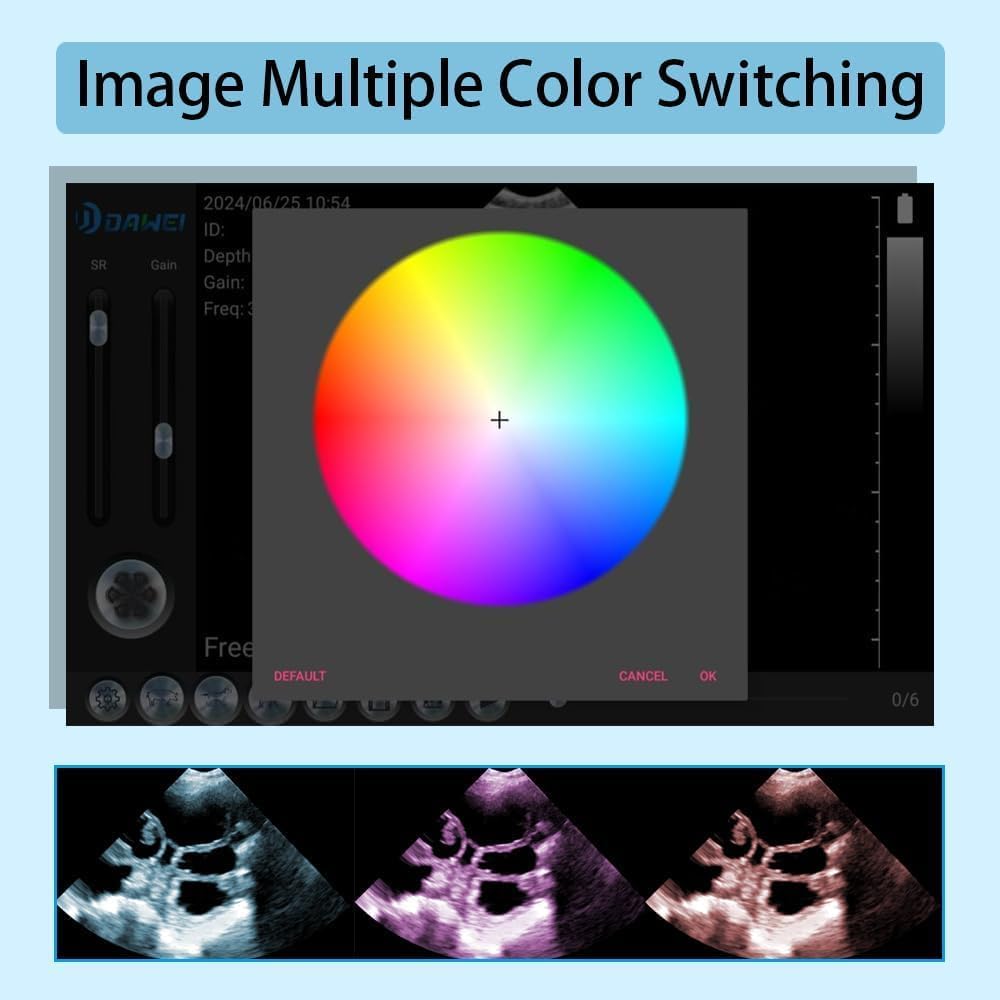

Pseudo-color Setting

Click the gray scale bar on the right side of the interface to enter the pseudo-color design interface and set the image display colors.

Image Depth and Image Gain Adjustment

In the ultrasound image area, adjust the depth by sliding your finger up or down (adjustable range: 10cm, 12cm, 14cm, 16cm, 18cm). Slide up to increase the depth by one level; slide down to decrease the depth by one level.

Adjust the image gain by sliding the gain slider in the control bar (range: 60dB to 120dB).

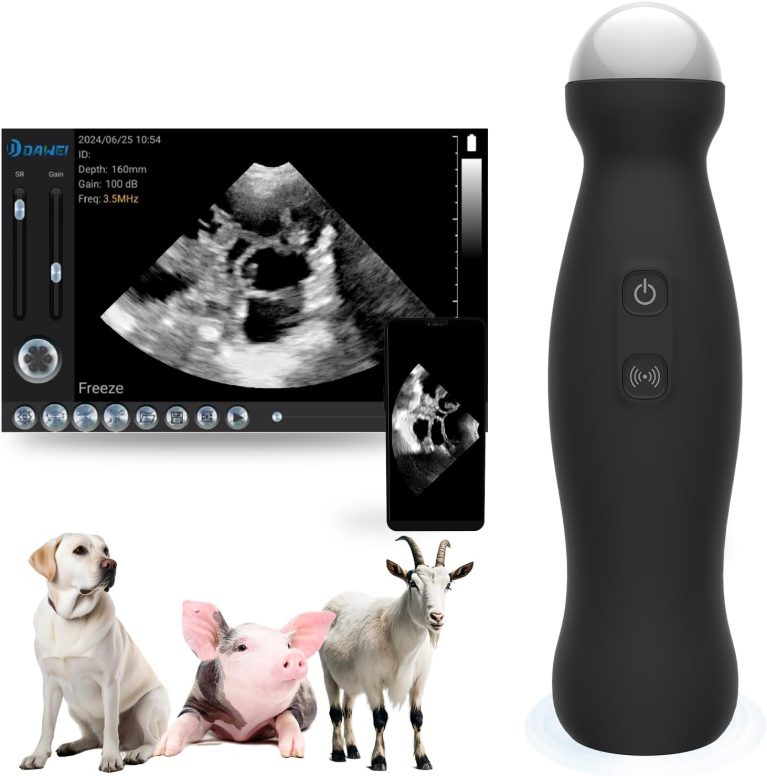

Wireless ultrasound machine for Pig, Dog, Sheep

Dawei veterinary Medical Corp.,Ltd.

Dawei veterinary Medical Corp.,Ltd. is a professional manufacturer of ultrasound scanners that is specialized in the development, manufacture and distribution of high quality ultrasound products.

We provide the most professional after-sales service and product training service . What you get was not only a machine ,but a long-time training to support your work from DAWEI

Any questions about our products, we’re all here to help

Package Dimensions ‏ : ‎ 8.89 x 4.91 x 3 inches; 10.58 ounces
Item model number ‏ : ‎ Ultrasound
Batteries ‏ : ‎ 1 Lithium Ion batteries required. (included)
Date First Available ‏ : ‎ April 17, 2025
Manufacturer ‏ : ‎ DAWEI
ASIN ‏ : ‎ B0F59YFW43
Country of Origin ‏ : ‎ China
Wireless Data Transfer：Equipped with seamless wireless connectivity (Wi-Fi/USB) to Android devices, tablets, or PCs for instant image sharing and data management. 4+ hours of continuous use—ideal for fieldwork.
Multi-Species Pregnancy & Backfat Analysis：Accurately detect early pregnancy in pigs, sheep, dogs, and more. Features automatic backfat measurement with precision algorithms to minimize human error. Save JPG images, generate PDF reports, or export data to Excel for streamlined record-keeping.
256-Gray Scale HD Imaging & Adjustable Depth：Crisp, detailed visuals with 256-gray scale resolution and advanced processing (noise suppression, contrast/edge enhancement). Adjust detection depth from 100mm to 180mm (5 preset levels) for optimal clarity across animal sizes.

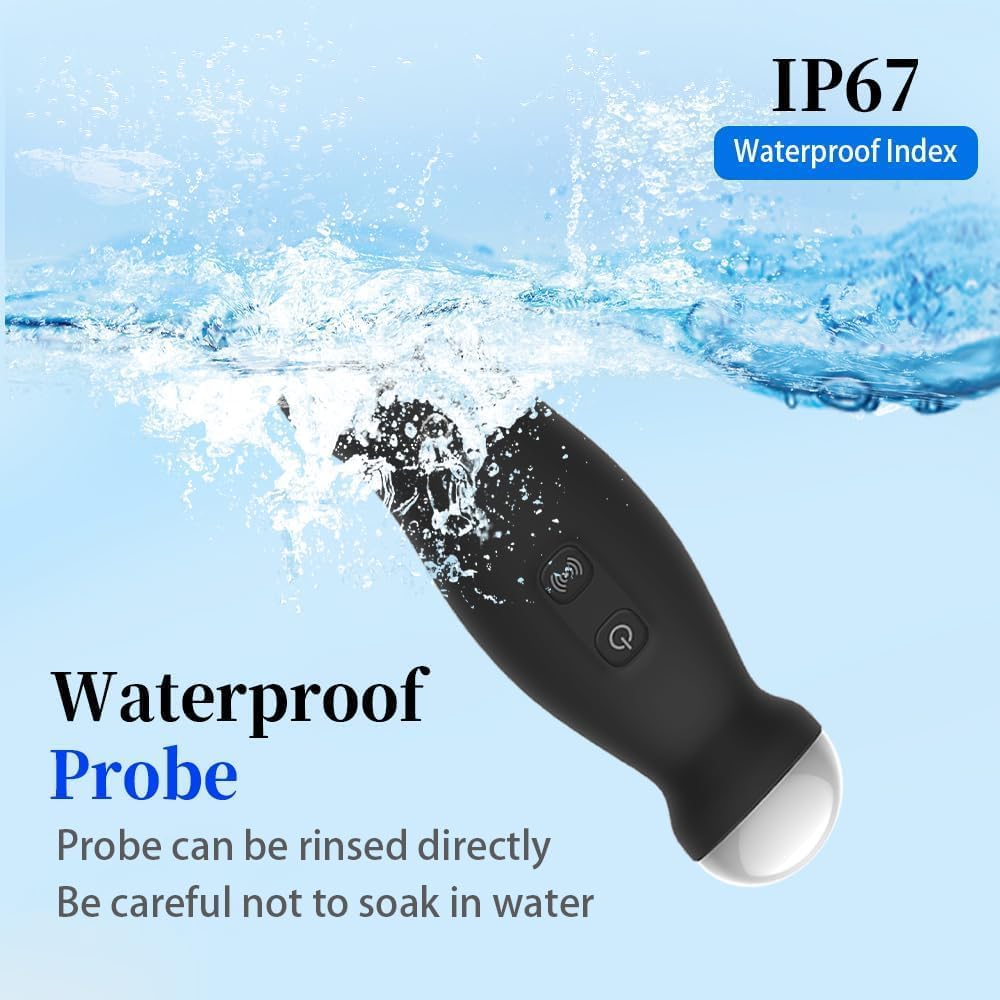

IP67 Waterproof Probe & Ergonomic Design：Rugged, IP67-rated waterproof probe. Anti-slip grip ensures secure handling during prolonged exams, reducing operator fatigue.
2-Year Warranty & Professional Support：Includes 2-year free warranty and lifetime maintenance. Backed by Dawei Veterinary Medical Corp.—experts in veterinary ultrasound tech. Free training resources provided for seamless adoption.
