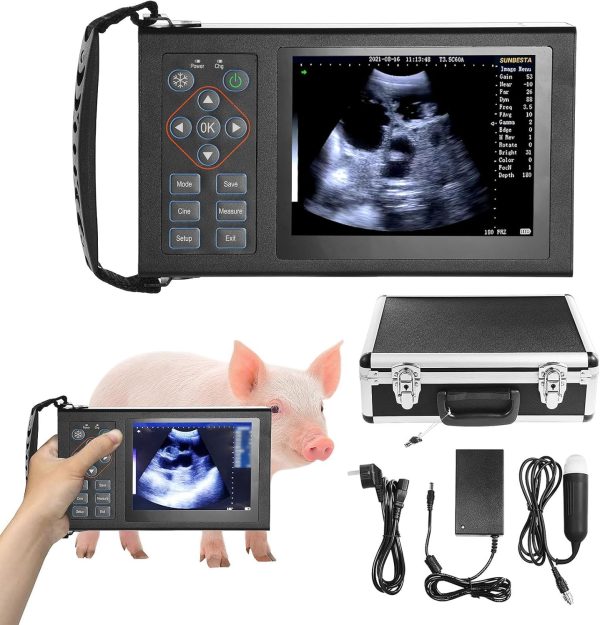

Portable Ultrasound Machine – 3.5Mhz Mechanical Probe Handheld B-Ultra…

Price: $484.49
(as of May 31, 2025 13:46:56 UTC –
Details)

Product Description

Goat Ultrasound Machine

This dog ultrasound machine quickly measures backfat, has 8GB and supports 16-color pseudo-color imaging. Easy to carry and with wide uses in veterinary.

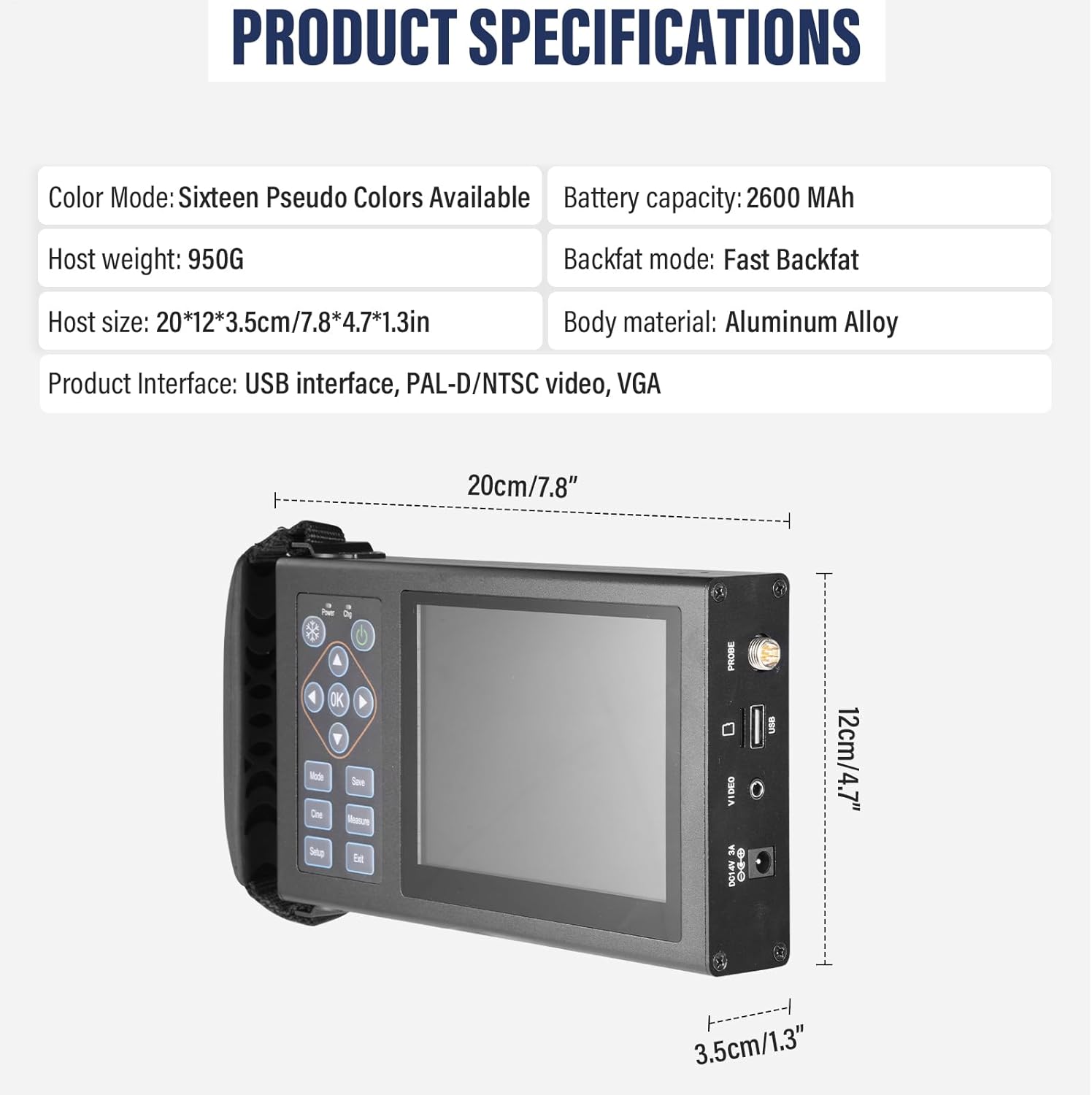

Specifications:

1. Display: 5.6-inch LED display

2. Scanning method: 3.5M mechanical fan scanning

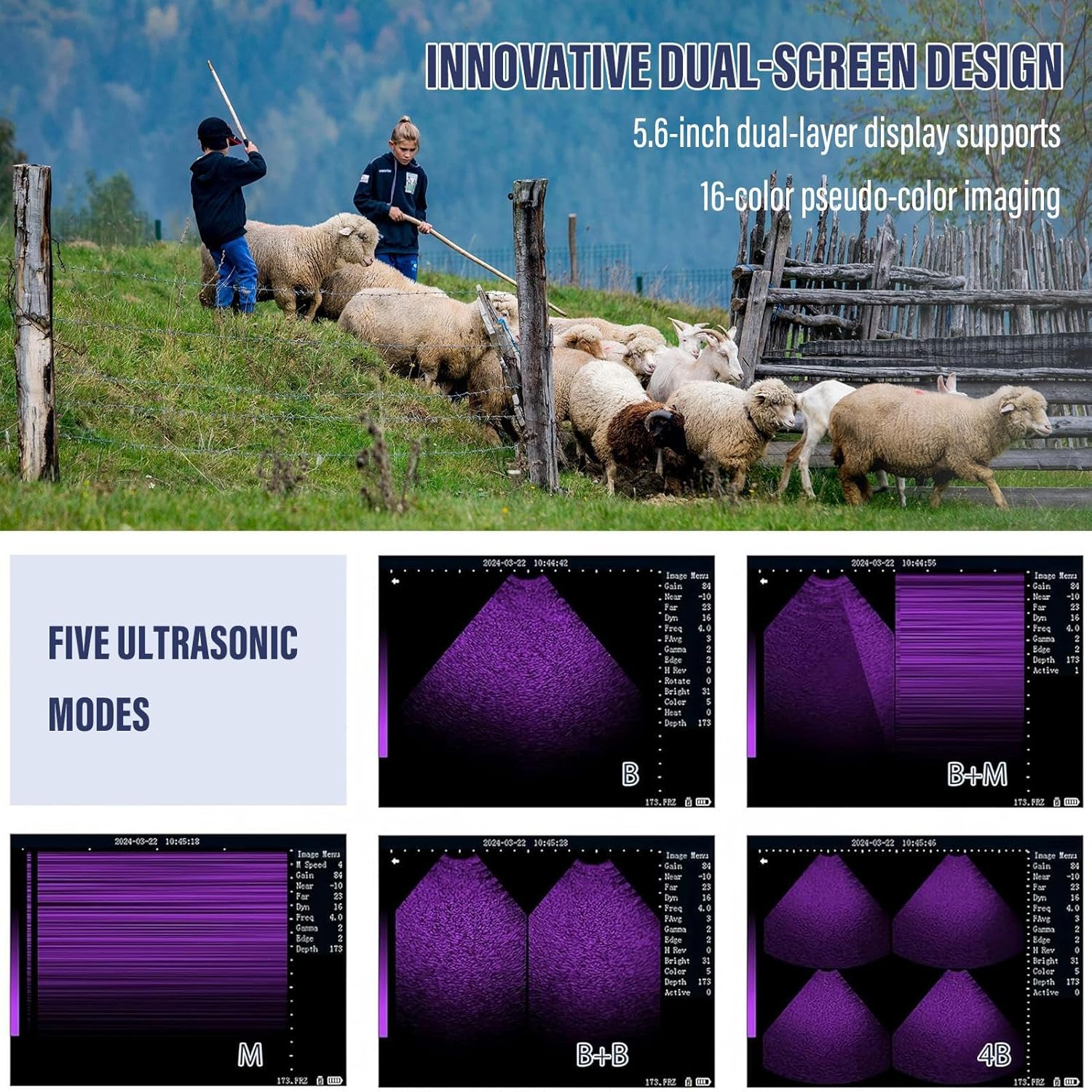

3. Display mode: B, M, BM, B+B, 4B

4. Fast backfat function (moving caliper)

5. Preheating function: one-key preheating function in winter

6. Body position marking: more than or equal to 18 types; in addition, there is an annotation function to facilitate text and body mark marking

7. Brushed metal body, body thickness is 35mm, metal texture, cool body, high-strength heat dissipation

8. 16 pseudo-color functions

9. Frequency conversion: 2.0MHz, 2.5MHz, 3.5MHz, 4.0MHz, 5.0MHz

10. Conventional measurement: distance, circumference, area, volume, angle, heart measurement and lean meat rate

11. Measurement: obstetric measurement of 8 animals (can measure pregnancy days and production date)

12. It has 256-fe movie playback function, fe-by-fe playback and video playback.

13. With grid ruler and dot ruler functions, quickly read the size of the detection target

14. Dynamic range: 0-135dB

15. Image processing: correction (0-7), fe correlation (0-3), edge enhancement (0-3), left-right turn over (0-1)

16. Maximum display depth: 270mm/10.6in

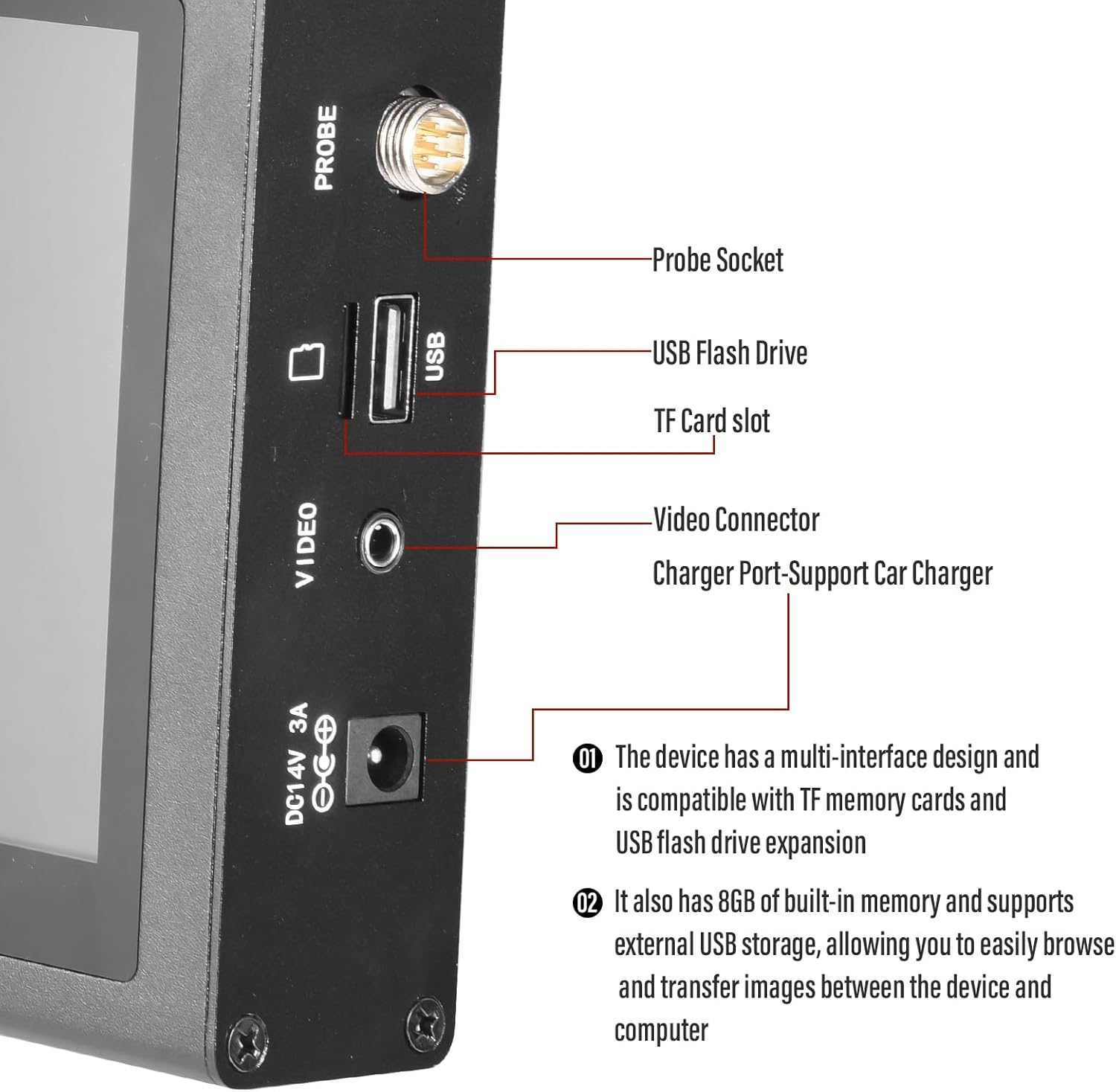

17. Interface: USB interface, video output interface (can be connected to video printer and display), power interface, probe interface

18. Display magnification: 16-levels magnification adjustment

19. Gain range: 0-100dB

20. Near field adjustment range: -31-0

21. Far field adjustment range: 0-31

22. Image rotation function, the image can be flipped up and down

23. With time and date, key tone on-off, winter mode, paeter mode, standby protection, multi-language Language selection, custom gestational age

Modernized Diagnosis: The scanning depth ranges from 60mm to 190mm, providing veterinarians with the versatility to examine anatomical structures at different depths,with a 3.5MHz mechanical probe, designed for animal use.Offering multiple functions and an intuitive panel, this vet ultrasound machine efficiently measures backfat and provides comprehensive results for quick diagnosis and promoted precision
Modernized Workflow: The vet ultrasound machine comes with 8GB and plenty of storage for streamlined image transfer between devices and computers. External USB support further simplifies the workflow, making it more efficient than ever before
Effortless Mobility: Ensure seamless veterinary care with this portable ultrasound machine.The scanner has B, M, BM, B+B, 4B display modes. It supports 5-levels frequency conversion: 2/2.5/3.5/4.0/5.0MHz.Its slim 35mm profile and smooth metal shell make it easy to carry, while a long-lasting 2600mAh battery enables 5 hours of continuous use
Advanced Imaging Excellence: Experience 16-color pseudo-color imaging, innovative double-screen design, one-button preheating function, waterproof protection, and a 5.6-inch double-layer display(outer screen can protect the inner screen, can prevent water ingress) optimized for excellent video playback.

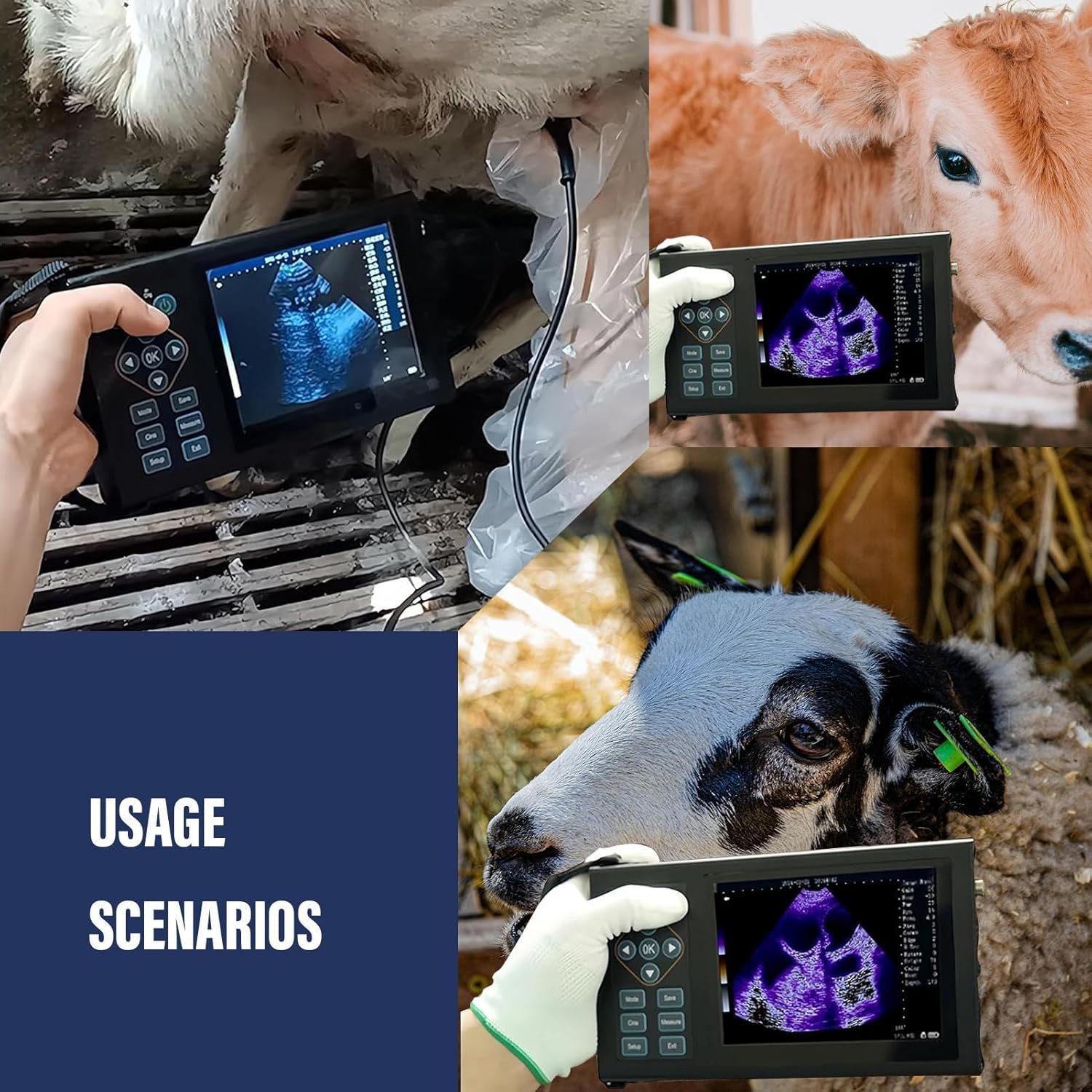

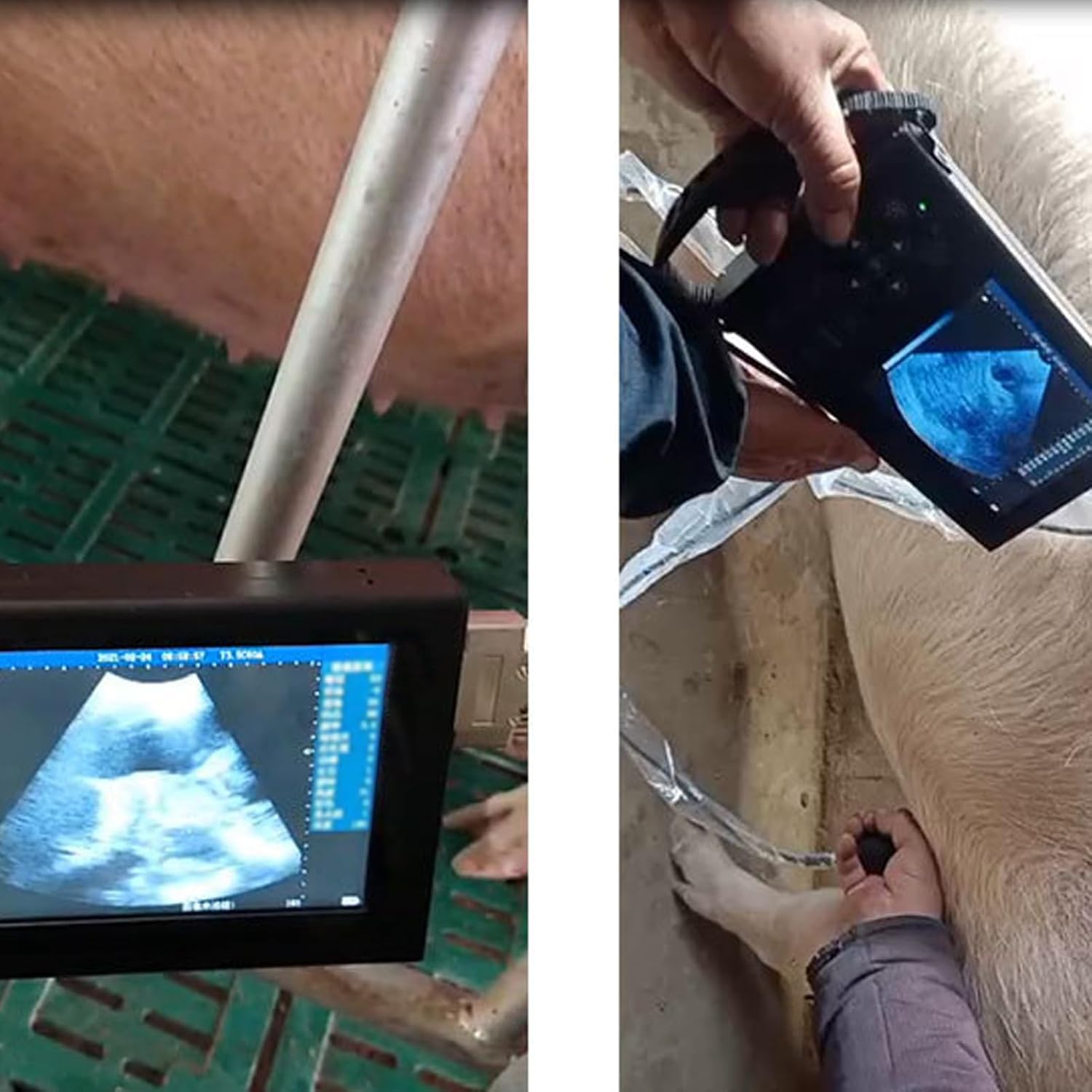

Vast Application: It can be connected to a computer to store and play more than 4000 images conveniently and quickly.Equipped with a mechanical probe for small animals, use it to confirm animal pregnancy in pigs, sheep, dogs, cats, etc.—a good choice for farm breeders and veterinarians. Wide Uses
