Dual Probe Wireless Color Doppler Ultrasound Machine 3.2MHZ and 7.5MHZ…

Price: $1,899.00
(as of Jun 01, 2025 04:03:27 UTC –
Details)

Product Description

Wireless Color Doppler Ultrasound Machine 3.2MHZ and 7.5MHZ Probe for Dog, Cat, House, Pig, Sheep

Introduction

Display mode：B、B/M、CFM、PDI、PWAnimal types：7 species: dog , cat, cow, horse, sheep, otherGeneral measurements: length, area/perimeter, depth, trajectory, angleB/M measurements: heart rate (2), duration, distance, LVID measurementPW measurement: speed, S/D, heart rate (2), depthCline loop：100/200/500/1000

B Mode

Gain (GN)：range：G30～G105Depth (D)：Convex: 90mm-305mm，Linear: 20mm-100mmImage enhancement（SRI）：0-4 level，5 gradesFocus：2 focus, 4 groups of positionsPuncture：There are two types of puncture aids: In-Plane (in-plane guidewire), Out-Plane (out-of-plane guidewire).Frequency：3.2MHz-5.0HMz，7.5MHz-10.0HMz

CFM Mode：

Color Gain：Color gain, range 0-100Scale（PRF）：1.25K、1.6K、2.5K、3.2K；1.25K、2.0K、3.2K、4.0KFilter：0-15, total 16 adjustable settingsRed-blue reversal：Color Coding FlipAngle of drift (Steer)：Sampling frame angles, 5 groups: -12, -7, 0, +7, +12

PW Mode：

PW Gain：PW gain, range 0-100Sampling volume：Size: 1mm\2mm\5mmAngle of drift：Sample line angles: -12, -7, 0, +7, +12Calibration angle：Sampling gate angle, +60 degrees, 0, -60 degreesScale(PRF)：1.25K、1.6K、2.5K、3.2K；1.25K、2.0K、3.2K、4.0KCalibration angle：Sampling gate angle, -85° to 85° in steps of 5

Others

Measurement aids：Measuring MagnifiersDICOM：TransferableRemark：Content remarkSave video：MP4，Up to 1000 fps (≈77 seconds)Save photo：JPG 、DICOMConfigurations：One Transducer, one set of wireless charger

Technical Parameters

Display mode：B、B/M、CFM、PDI、PWScan mode: Convex transducerScanning depth：Convex: 90mm-305mm，Linear: 20mm-100mmDog：HBL, PSD, HD, BCDCat：BCD, HDCow：HBL, TD, HDHorse：PSVD, PSHDSheep：HBL, BD

Wireless Connection

Up to 15 meters connection, no signal lossWireless magnetic induction charging method for invisible charging, greatly reduce the equipment wear rate is low, wider application rangeIOS download DWScanner directly.Android: We can provide the installation package.

3.2MHZ and 7.5MHZ Probe for Dog, Cat, House, Pig, Sheep

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

5.0 out of 5 stars 2

5.0 out of 5 stars 1

—

—

4.2 out of 5 stars 5

Price

$1,599.00$1,599.00 $1,989.00$1,989.00 $2,149.00$2,149.00 $2,339.00$2,339.00 $1,899.00$1,899.00

Color Doppler

✓

✓

✓

✓

✓

Mode
B、B/M、CFM、PDI、PW B、B/M、CFM、PDI、PW B、B/M、CFM、PDI、PW B、B/M、CFM、PDI、PW B、B/M、CFM、PDI、PW

Probe
Convex Probe Microconvex Probe Linear Probe Phased Probe Convex and Linear Probe

Frequency
3.2MHz-5.0HMz 6.5MHz-8.0HMz 7.5MHz-10.0HMz 2.2MHz-3.6HMz 3.2MHz-5.0HMz/7.5MHz-10.0HMz

Applicable System
IOS/Android IOS/Android IOS/Android IOS/Android IOS/Android

Suitable For
Pig, Sheep, Cow, Goat, Dog Dog, Cat, Smal Animals Dog, Cat, Rabbit Dog, Cat, Cow, Horse Dog, Pig, Sheep, Cow, Horse, Rabbit

Size
116mm*71mm*22mm 132mm*52mm*23mm 115mm*65mm*22mm 127mm*52mm*23mm 123mm*52.6mm*22mm

Package Dimensions ‏ : ‎ 8.86 x 7.28 x 3.74 inches; 4.4 Pounds
Item model number ‏ : ‎ X1
Batteries ‏ : ‎ 1 Lithium Ion batteries required. (included)
Date First Available ‏ : ‎ August 5, 2024
Manufacturer ‏ : ‎ DAWEI
ASIN ‏ : ‎ B0DC6DLS1F
Country of Origin ‏ : ‎ China
Veterinary color Doppler ultrasound device for pregnancy detection, internal organ examination, and blood flow analysis, featuring multiple modes (B, B/M, CFM, PDI, PW) and comprehensive measurements (length, area/circumference, depth, trace, angle, heart rate, duration, distance, LVID, velocity, S/D).
Featuring both convex and linear array probes, each supporting dual frequencies (7.5MHz/10MHz and 3.2MHz/5MHz), suitable for medium to large animals like dogs, pigs, horses, cows, and sheep, as well as small animals such as cats, hamsters, and rabbits. Includes a 1350mAh battery for over two hours of continuous use.

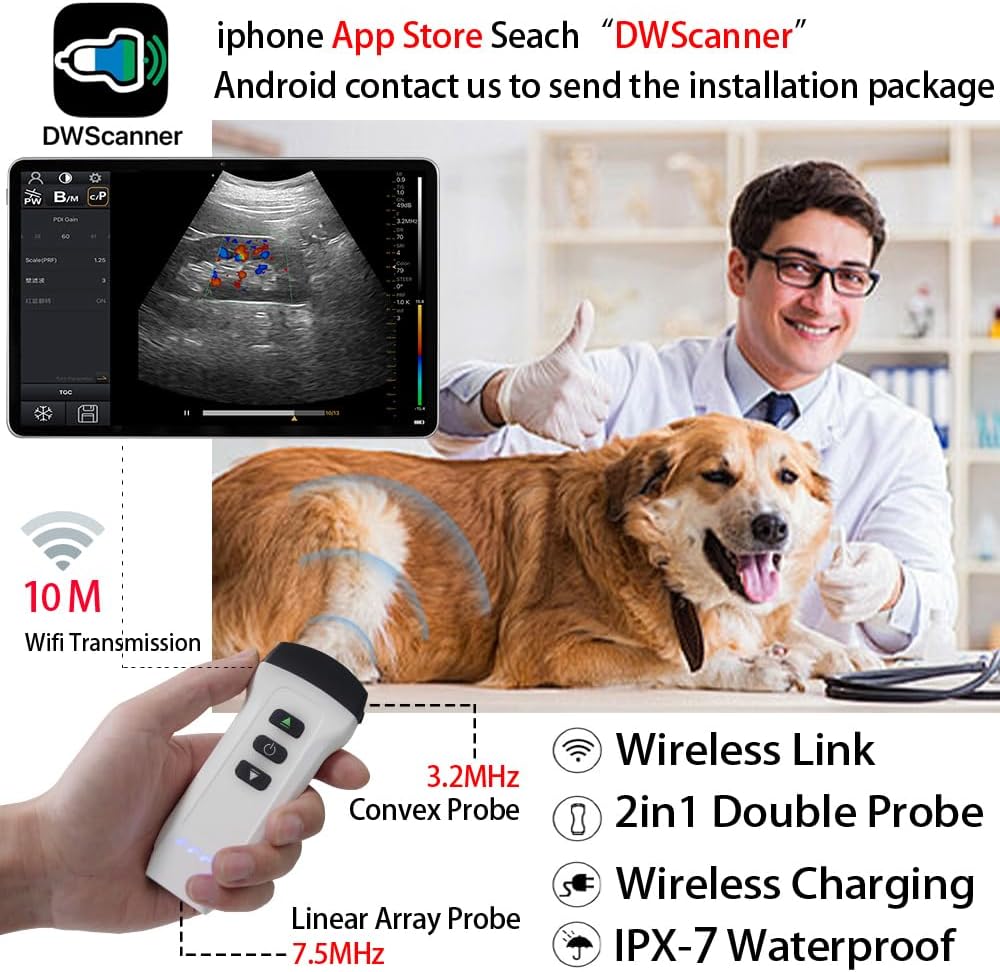

Suitable For IOS and Android systems: IOS can directly download DWscanner, Android can contact us for the installation package. Perfectly matches phone or tablet sizes for enhanced convenience.

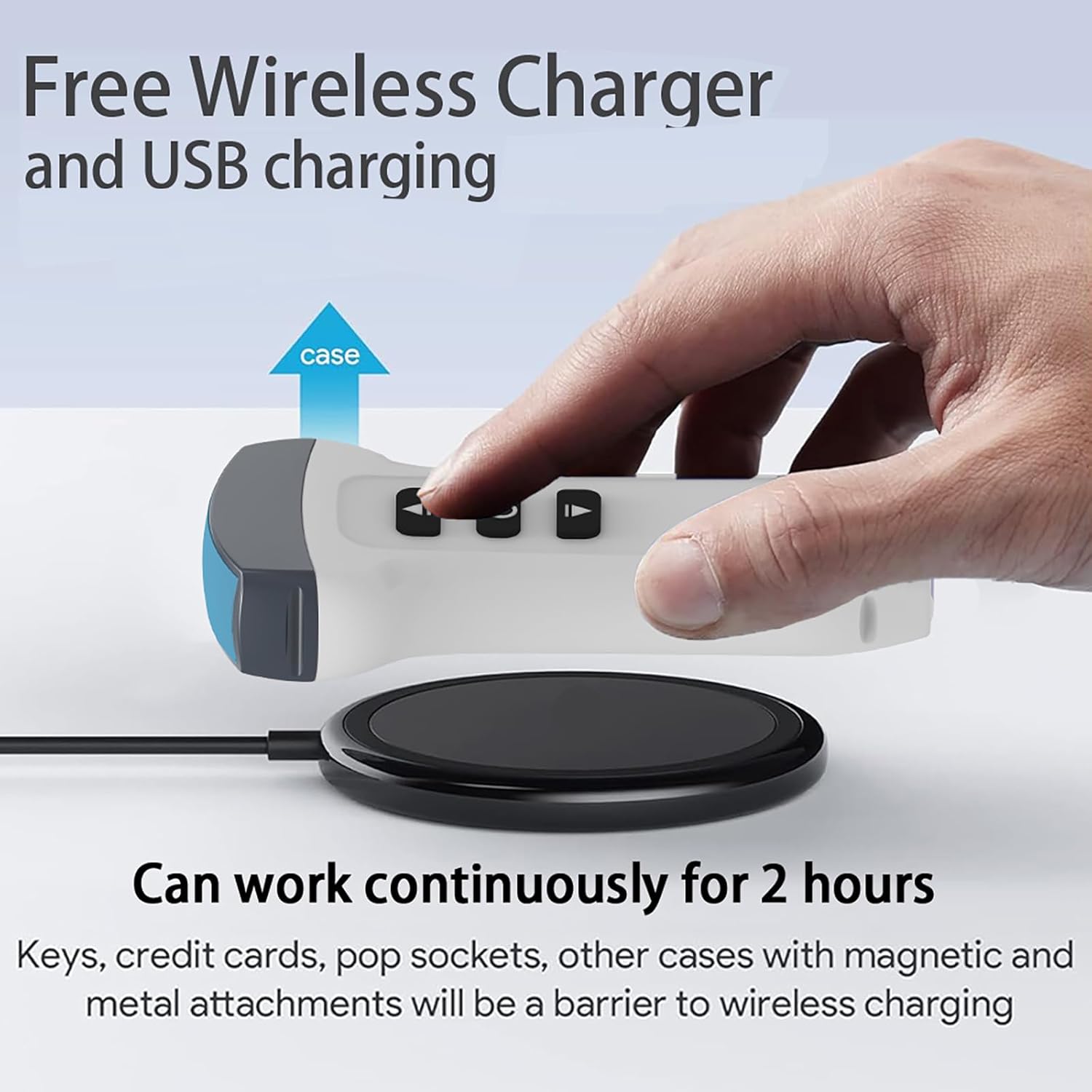

Wireless connectivity and wireless charging: enjoy uninterrupted signal transmission up to 10 meters with no quality loss, ensuring smooth data transfer across multiple devices for various imaging needs. Utilize wireless inductive charging for seamless, wear-free, high-tech, and convenient operation, allowing for use and charge on-the-go.
After-Sales Service: Enjoy a two-year free warranty and lifetime maintenance. You receive not just a machine, but ongoing training to support your work. Dawei Veterinary Medical Corp., Ltd. specializes in developing, manufacturing, and selling high-quality ultrasound products. For any inquiries, please feel free to contact us.
